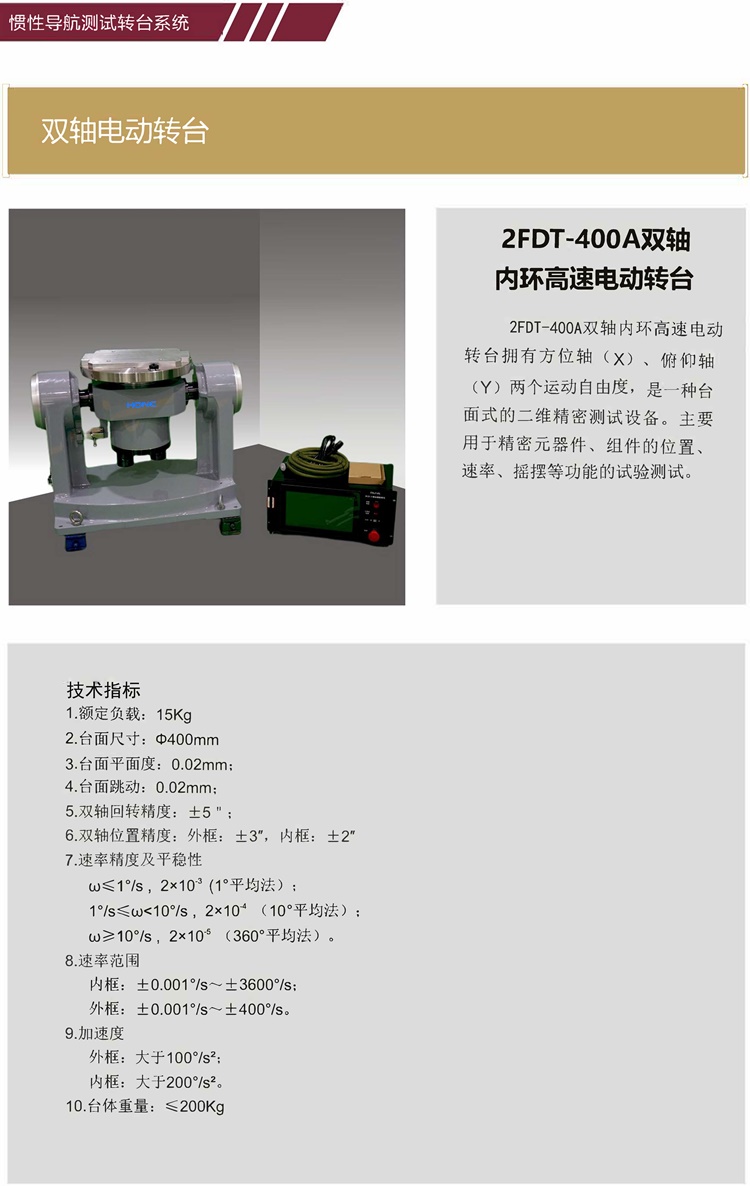

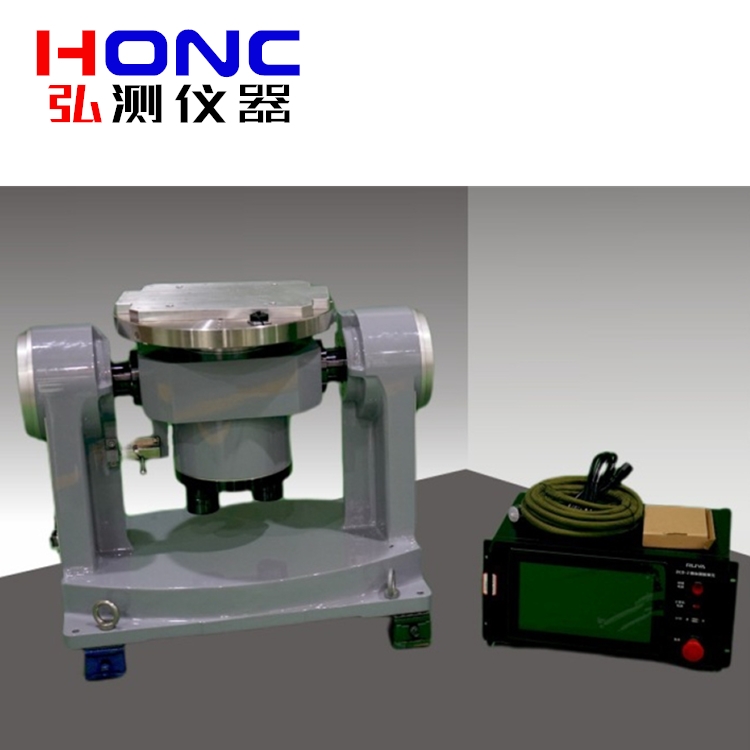

2FDT-400A型 雙軸內環高速電動轉臺【慣性導航測試轉臺】
2FDT-400A型 雙軸內環高速電動轉臺【慣性導航測試轉臺】
產品簡介 Product introduction
技術指標 Technical indicators
1.額定負載:15Kg;
2.臺面尺寸:Ф400mm;
3.臺面平面度:0.02mm;
4.臺面跳動:0.02mm;
5.雙軸回轉精度:±5";
6.雙軸位置精度:外框:±3″,內框:±2″;
7.速率精度及平穩性
ω≤1°/s,2×10-3 (1°平均法);
1°/s≤ω<10°/s,2×10-4 (10°平均法);
ω≥10°/s,2×10-5 (360°平均法)。
8.速率范圍
內框:±0.001°/s~±3600°/s;
外框:±0.001°/s~±400°/s。
9.加速度
外框:大于100°/s2;
內框:大于200°/s2。
10.臺體重量:≤200Kg;
